NTAI03 ABB Termination Unit Bailey Controls

NTAI03 ABB Termination Unit Bailey Controls

  • NTAI03 ABB Termination Unit Bailey Controls
  • NTAI03 ABB Termination Unit Bailey Controls
NTAI03 ABB Termination Unit Bailey Controls
商品の詳細:
起源の場所: アメリカ合衆国
ブランド名: ABB
証明: COC
モデル番号: NTAI03
書類: NTAI03.pdf
お支払配送条件:
最小注文数量: 1個
価格: 1500
パッケージの詳細: オリジナル
受渡し時間: 5~8営業日
支払条件: T/T
供給の能力: 1日あたり10ピース
連絡先
詳細製品概要
名前: NTAI03 モデル: NTAI03
パッケージ: 標準 保証: 12ヶ月
総重量: 2.2 lbs / 35.2 oz / 1kg 梱包サイズ: 7 "x 7" x 4 "(18 cm x 18 cm x 10 cm)
リードタイム: 1~3日 品質: 100%ブランド
ストック: 利用可能
ハイライト:

ABB termination unit module

,

Bailey Controls termination unit

,

ABB NTAI03 module with warranty

NTAI03 ABB Termination Unit Bailey Controls

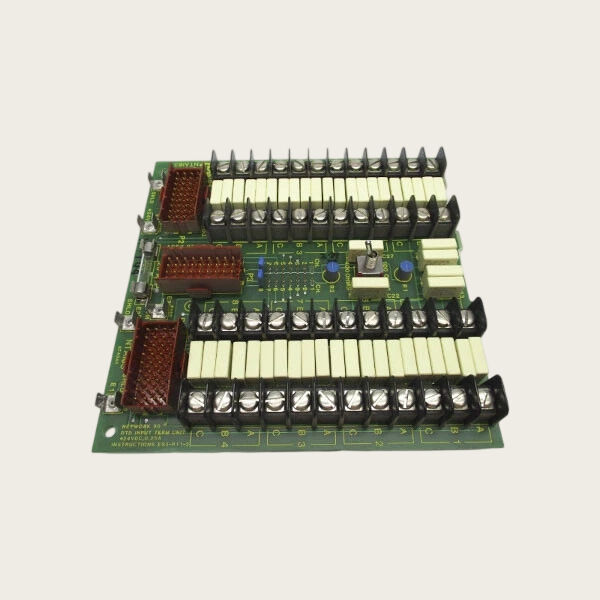

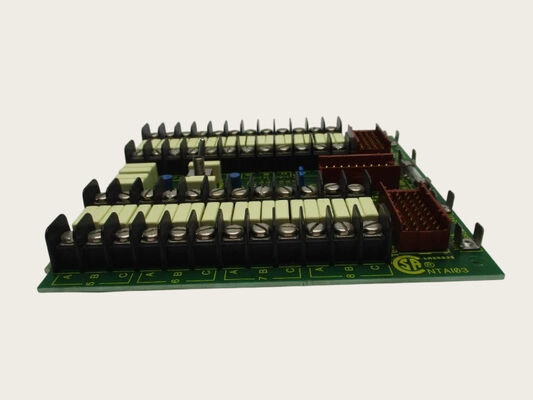

The NTAI03 ABB Termination Unit from Bailey Controls serves as a critical interface component in industrial process control systems, designed to connect field wiring from RTD temperature sensors to Analog Slave Modules.
Product Specifications
Brand Name ABB
Model NTAI03
Catalog Procontrol
Origin USA
Dimension 16*16*12cm
Weight 0.5kg
HS Code 8537101190
Payment T/T
Sales Price $1500
Warranty 12 months
Lead Time 3-5 work days
Product Description
The NTAI03 termination unit functions as an interface box that connects field wiring from RTD temperature sensors to one or two Analog Slave Modules (NASM03) in industrial process control environments.
  • Processes signals from up to 16 Platinum RTD sensors
  • Transmits sensor signals to control system analog modules
  • Features dedicated calibration sockets for testing and adjustment
  • Includes terminal blocks (TB1-TB4) for sensor wiring connections
  • Provides sockets (P1, P2) for slave module connections using NKTU01 cables
  • Equipped with calibration socket (P3) and protective fuse
  • Includes selector switch for resistance calibration settings
Technical Information
N/M N/M
07NG61R2 GJV3074311R2
07ZE61 GJV3074321R302
NMBC-01 64079760B
NTAI03 ABB Termination Unit Bailey Controls 0
