| 起源の場所: | アメリカ合衆国 |
| ブランド名: | GE |
| 証明: | CO |
| モデル番号: | IS220PTCCH1A |
| 最小注文数量: | 1個 |
|---|---|
| 価格: | $6000 |
| パッケージの詳細: | 6"x"×"x"×"×"×"×"×"×"×" |
| 受渡し時間: | 5～8営業日 |
| 支払条件: | T/T |
| 供給の能力: | 10pcs |
| ブランド名: | GE | モデル: | IS220PTCCH1A |
|---|---|---|---|
| 状態: | 新しい | 総重量/輸送重量: | 2.2 lbs / 35.2 oz / 1kg |
| 梱包サイズ: | 6"x"×"x"×"×"×"×"×"×"×" | 原産国/原産国: | アメリカ合衆国 (USA) |
| リードタイム: | 在庫あり | 配送ポート: | Xiamen |
| 支払い: | T/T | 販売価格: | 問い合わせ |
| 色: | 材料によって異なります | 保証: | 12ヶ月 |
| リードタイム: | 5～8営業日 | クリアーパートナー: | DHL,UPS,TNT,FedEx,EMS |
| ハイライト: | GE Mark Vie thermocouple input module,GE Fanuc PLC IO module,IS220PTCCH1A thermocouple input module |
||

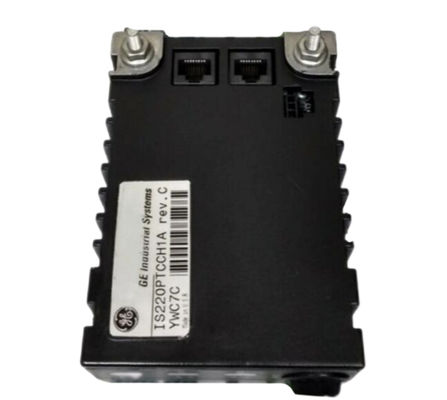

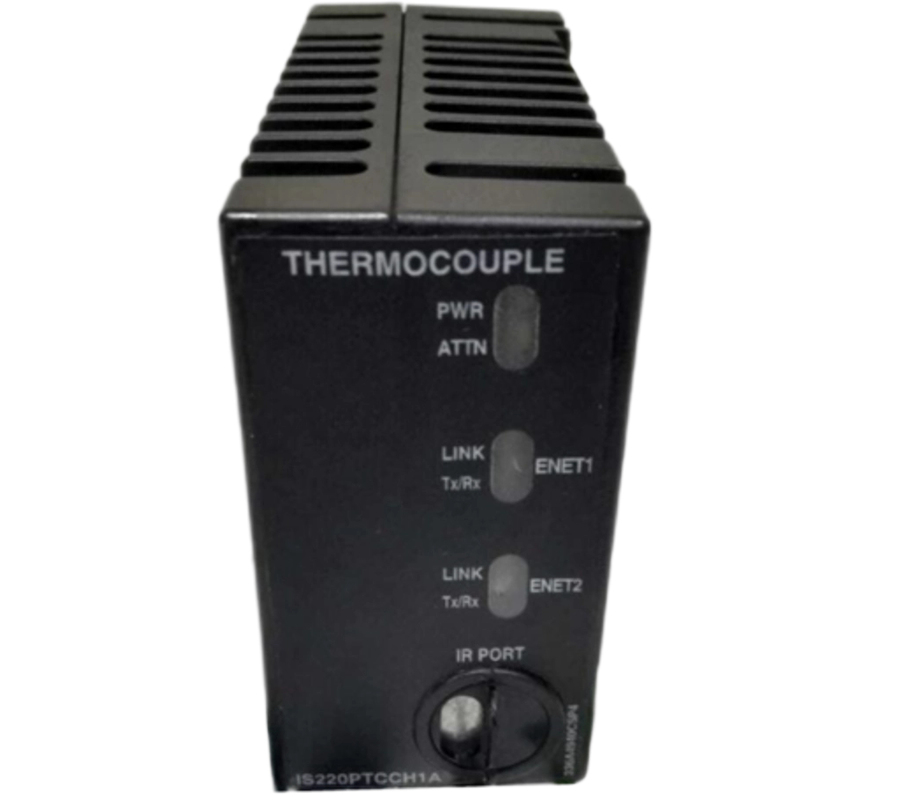

GE IS220PTCCH1A REV C GE Mark Vie IO PACK Thermocouple Input Module
Product Details:
| Brand Name | GE |
| Model | IS220PSCAH1A |
| Catalog | Mark VI |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $6000 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| N/M | N/M |
Description:
The IS220PTCCH1A is a Thermocouple Input Module manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Control Systems. The PTCC provides the electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board. The pack contains a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to the thermocouple input function. The pack is capable of handling up to 12 thermocouple inputs.
The IS220PTCCH1A is a thermocouple input manufactured by General Electric for Mark VI/Mark VIe systems. These systems are part of a series of Speedtronic systems later developed and released by General Electric for managing and controlling turbine systems in the gas, water, and steam industries. This package contains an internally mounted BPPx processor board and a data acquisition board for thermocouple input functionality.
