| 起源の場所: | アメリカ合衆国 |
| ブランド名: | GE |
| 証明: | CO |
| モデル番号: | IS220PRTDH1A |
| 最小注文数量: | 1pc |
|---|---|
| 価格: | $3500 |
| パッケージの詳細: | 6"x"×"x"×"×"×"×"×"×"×" |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 10pcs |
| ブランド名: | GE | モデル: | IS220PRTDH1A |
|---|---|---|---|
| 状態: | 新しい | 総重量/輸送重量: | 2.2 lbs / 35.2 oz / 1kg |
| 梱包サイズ: | 6"x"×"x"×"×"×"×"×"×"×" | 原産国/原産国: | アメリカ合衆国 (USA) |
| リードタイム: | 在庫あり | 配送ポート: | Xiamen |
| 支払い: | T/T | 販売価格: | 問い合わせ |
| 色: | 材料によって異なります | 保証: | 12か月 |
| リードタイム: | 5-8勤務日 | クリアーパートナー: | DHL,UPS,TNT,FedEx,EMS |

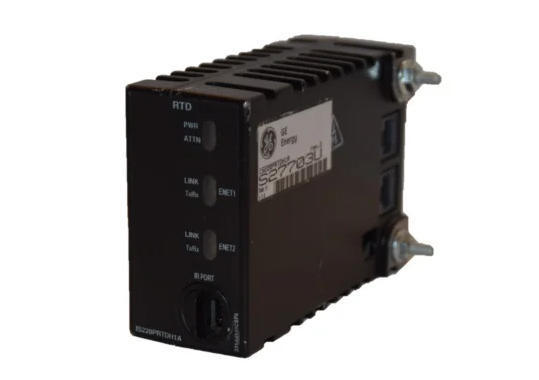

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack
Product Details:
| Brand Name | GE |
| Model | IS220PRTDH1A |
| Catalog | Mark VI |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $3500 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| N/M | N/M |
Description:
The GE IS220PRTDH1A is a Resistance Temperature Device Input Module manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. An RTD input terminal board and one or more I/O Ethernet networks are connected electrically by the Resistance Temperature Device (RTD) Input (PRTD) pack.
An acquisition board dedicated to the thermocouple input function is included in the pack, along with a processor board that is shared by all Mark VIe distributed I/O packs. Up to eight RTD inputs can be supported by the I/O pack, while the TRTD terminal boards can support up to sixteen RTD inputs. A DC-37 pin connector that links directly to the terminal board connector for the pack, as well as a three-pin power input, are used for input. There are two RJ45 Ethernet connectors for the output. Indicator LEDs are used to display visual diagnostics.
