| 起源の場所: | アメリカ合衆国 |
| ブランド名: | GE |
| 証明: | CO |
| モデル番号: | IS200SPROH1ABC |
| 最小注文数量: | 1pc |
|---|---|
| 価格: | $3000 |
| パッケージの詳細: | 6"x"×"x"×"×"×"×"×"×"×" |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 10pcs |
| ブランド名: | GE | モデル: | IS200SPROH1ABC |
|---|---|---|---|
| 状態: | 新しい | 総重量/輸送重量: | 2.2 lbs / 35.2 oz / 1kg |
| 梱包サイズ: | 6"x"×"x"×"×"×"×"×"×"×" | 原産国/原産国: | アメリカ合衆国 (USA) |
| リードタイム: | 在庫あり | 配送ポート: | Xiamen |
| 支払い: | T/T | 販売価格: | 問い合わせ |
| 色: | 材料によって異なります | 保証: | 12か月 |
| リードタイム: | 5-8勤務日 | クリアーパートナー: | DHL,UPS,TNT,FedEx,EMS |
| ハイライト: | GE IS200SPROH1ABC terminal board,turbine control circuit card,GE Fanuc PLC terminal board |
||

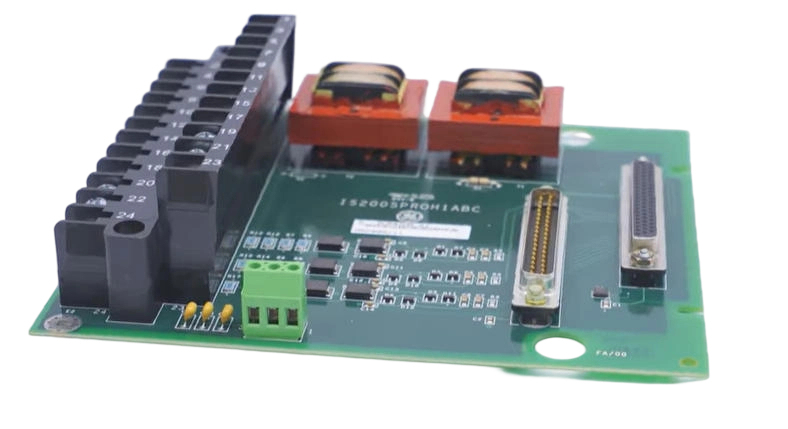

GE IS200SPROH1ABC Terminal Board For Turbine Control Systems Circuit Card
Product Details:
| Brand Name | GE |
| Model | IS200SPROH1ABC |
| Catalog | Mark VI |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $3000 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| N/M | N/M |
Description:
The GE IS200SPROH1ABC it is part of Mark VIe control system. The Emergency Protection (SPRO) terminal board is designed to interface with either a PPRO (Primary Protection) or YPRO (Backup Protection) I/O pack. The SPRO terminal board conditions the incoming speed signal inputs for these I/O packs, ensuring that the control system can accurately monitor the turbine's speed.
The product function it to facilitate communication with the backup trip protection system, the SPRO terminal board includes a DC-37 pin connector. This connector is located next to the PPRO or YPRO I/O pack connector and is used to connect a cable leading to a backup trip relay terminal board. This configuration allows for an additional layer of protection, ensuring that if the primary system fails, the backup system can still initiate a trip to protect the turbine.
